● Capable of measuring temperatures at multiple points over long distances and large areas
● Flexible sensor structure enabling high flexiblity in installation
0
＃Flexible sensor ＃FHE device ＃Long distance ＃Large area substrate ＃Thin ＃Multipoint sensor ＃Temperature sensor
Device Examples
Long-range sensor
| Item | Specification (tentative) |
|---|---|
| Size | Width 44mm |
| Length 1 to 10m *negotiable for more than 10m |
|
| Thickness ＜1mm | |
| Sensor type | Temperature *Other than temperature, please consult with us. |
| Number of sensors | ≦55 *negotiable for more than 55 sensors. Sensor locations can be adjusted. |
| Measurement temperature range | -20℃ to +80℃ |
| Measurement accuracy | ±0.5℃ |
| Communication method | Wired connection to PC |
| Logging | Possible |
*Figures are typical values.
Two-dimensional layout is also possible.

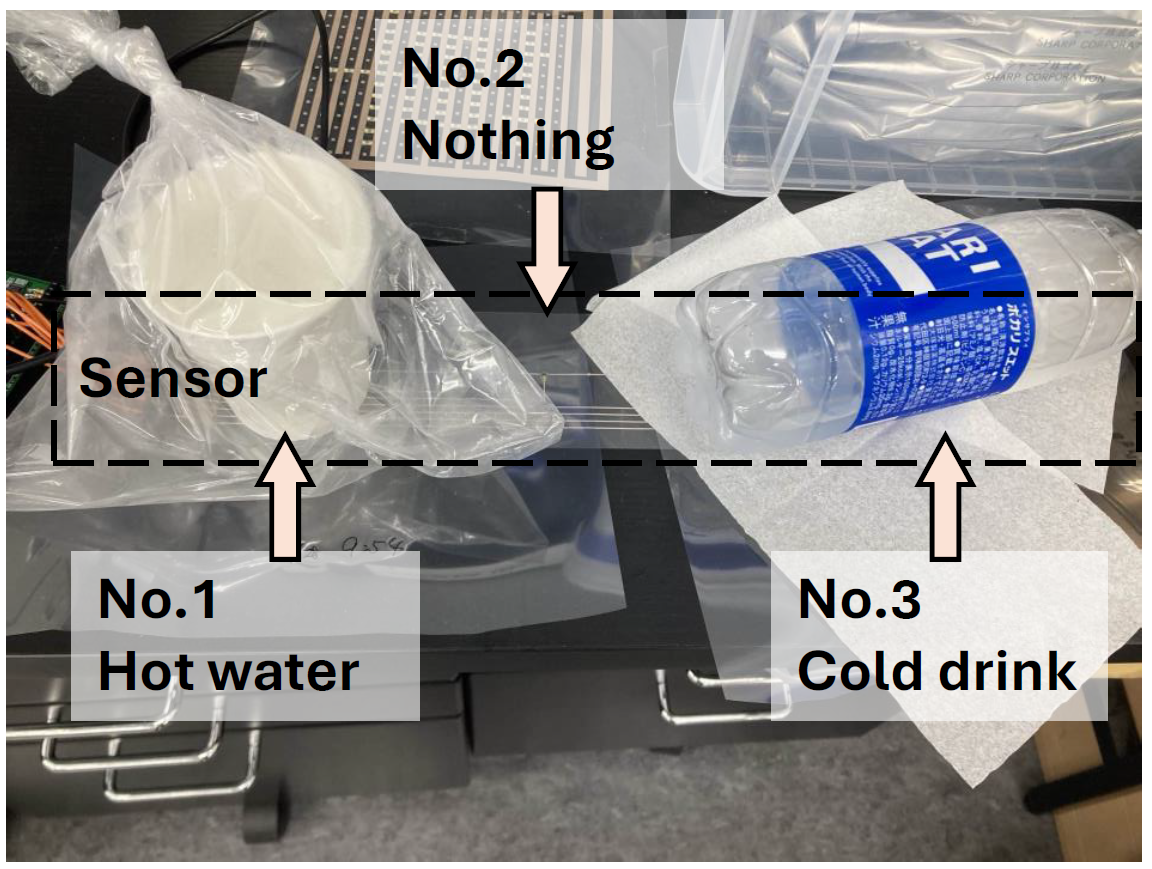

Application Examples
● temperature monitoring
● Monitoring body temperature in bed

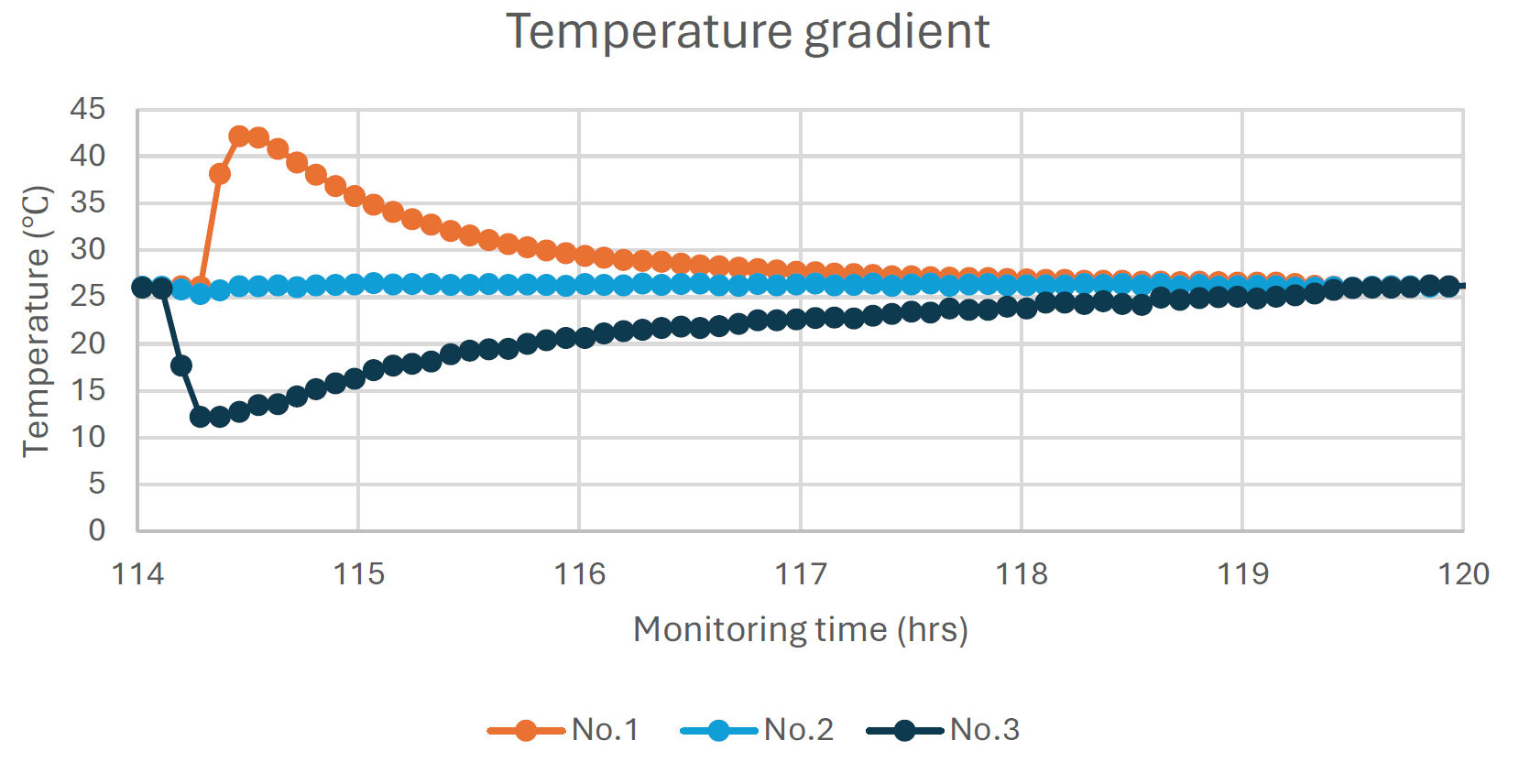

Unit： ℃
Potential Applications
